appreciated role. A check valve, also commonly referred to as a non - return valve or one - way valve, is a mechanical device designed with the sole purpose of allowing fluid, whether it be a liquid or a gas, to flow through it in only one direction. Understanding its structure, working principle, types, and applications provides valuable insights into its significance across various industries.

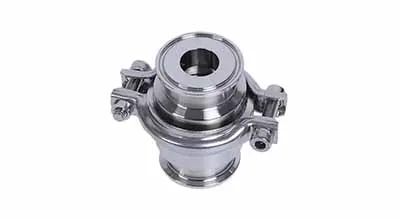

Sanitary Thread Check No Return Valve
Structure: It typically consists of a valve body, a closure member (such as a disc, ball, or flap), and a seat. The valve body provides the housing and connection points for the valve to be installed in a pipeline. The closure member is the movable part that controls the flow, and the seat is where the closure member rests to form a seal when the valve is closed.
Working Principle: Check valves operate based on the pressure difference across the valve. When the fluid flows in the forward direction, the pressure of the fluid pushes the closure member open, allowing the fluid to pass through. When the fluid tries to flow in the reverse direction, the pressure of the fluid forces the closure member against the seat, creating a seal and preventing the fluid from flowing back.
Swing Check Valve: It has a hinged disc that swings open and closed. The disc is attached to a hinge pin at the top of the valve body. When the fluid flows in the forward direction, the disc swings open like a door. When the flow reverses, the disc swings back and seats against the valve seat to prevent backflow. Swing check valves are suitable for large - diameter pipelines and high - flow - rate applications.
Lift Check Valve: This type has a movable disc or piston - like closure member that lifts off the seat when the fluid flows in the forward direction. The disc is guided by a stem or a cage - like structure. Lift check valves offer better sealing performance compared to swing check valves and are often used in applications where a tight seal is required, such as in some industrial processes and in pipelines carrying valuable or hazardous fluids.
Ball Check Valve: It uses a spherical ball as the closure member. The ball is seated in a valve body with a seat ring. When the fluid flows in the forward direction, the ball is pushed off the seat, allowing the fluid to pass. In the reverse direction, the ball seats against the seat ring to prevent backflow. Ball check valves are known for their simple structure, good sealing performance, and ability to handle high - pressure and high - temperature applications.
Flap Check Valve: Also called a duck - bill valve, it has a flexible flap - like closure member. The flap is attached to the valve body at one end and opens and closes based on the fluid flow. Flap check valves are often used in applications where space is limited and a lightweight, low - cost option is required, such as in some water and wastewater treatment systems.
Preventing Backflow in Piping Systems: In various industrial and commercial piping systems, check valves are used to prevent the backflow of fluids. For example, in a water supply system, check valves are installed to prevent water from flowing back into the main supply line when the pressure in a branch line drops. This helps to maintain the integrity of the system and prevent contamination or damage.
Protecting Equipment: In industrial processes, check valves are used to protect pumps, compressors, and other equipment from damage due to backflow. If a pump were to suddenly stop operating, the check valve would prevent the fluid from flowing back through the pump, which could cause the pump to run in reverse and potentially damage its components.
Controlling Fluid Flow in Specific Applications: Check valves are also used in applications where the flow of fluid needs to be controlled in a specific direction. For example, in a fuel delivery system for an engine, check valves are used to ensure that fuel flows from the fuel tank to the engine and does not flow back. This helps to maintain a consistent supply of fuel and prevent fuel from leaking or being wasted.
In conclusion, check valves are indispensable components in fluid management systems. Their ability to allow fluid to flow in only one direction while preventing backflow is essential for maintaining the safety, efficiency, and reliability of countless applications across diverse industries. As technology continues to advance, the design and performance of check valves are also evolving, enabling them to meet the increasingly complex and demanding requirements of modern fluid handling systems.
