Sanitary Breathing Valve

sanitary stainless steel 304 316 1 1/2″ tc air release tri clamp Pressure Relief Safety breathing valve
Size1.5″-2.0″
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
TemperatureMax 150 ℃ (Silicone)
Max pressure40psi (3bar)
Product Description

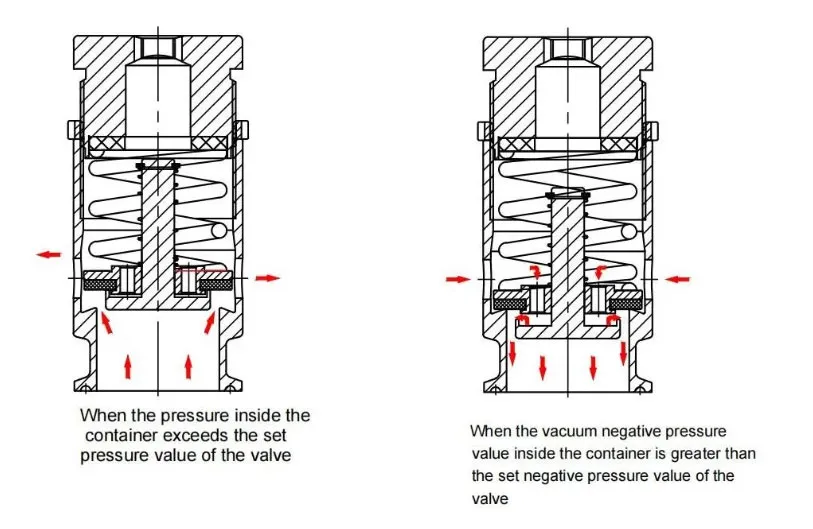

Sanitary Breathing Valveis a self-acting device, designed for keeping tanks to work properly. It could release air out of tanks to maintain pressure, and also absorb air into tanks to be anti-vacuum.

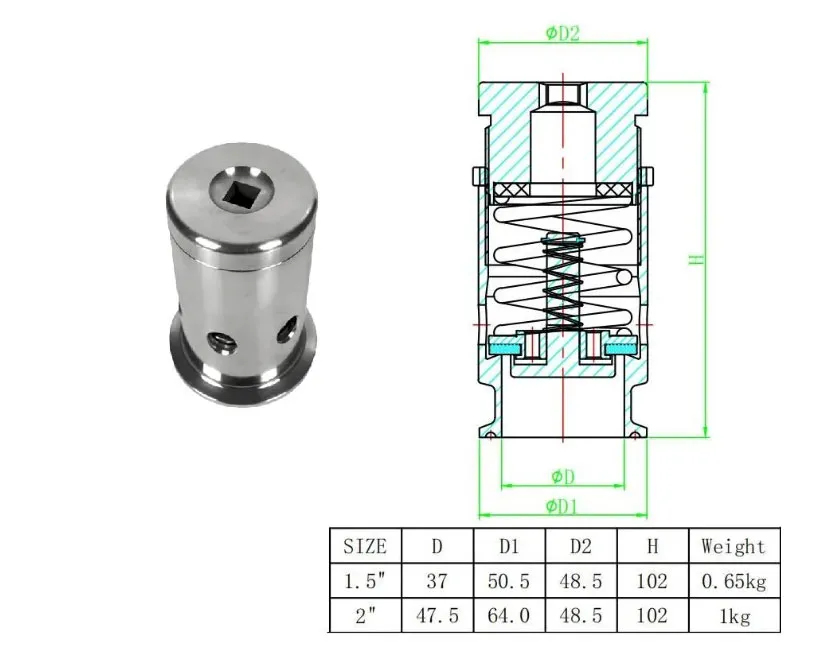

Rreference data
Size 1.5″-2.0″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature Max 150 ℃ (Silicone)
Max pressure 40psi (3bar)
Seal EPDM, Silicone
Pipe Joint Systems Clamp part K50.5 k64
Surface treatment CNC machined Ra 1.6 μm
