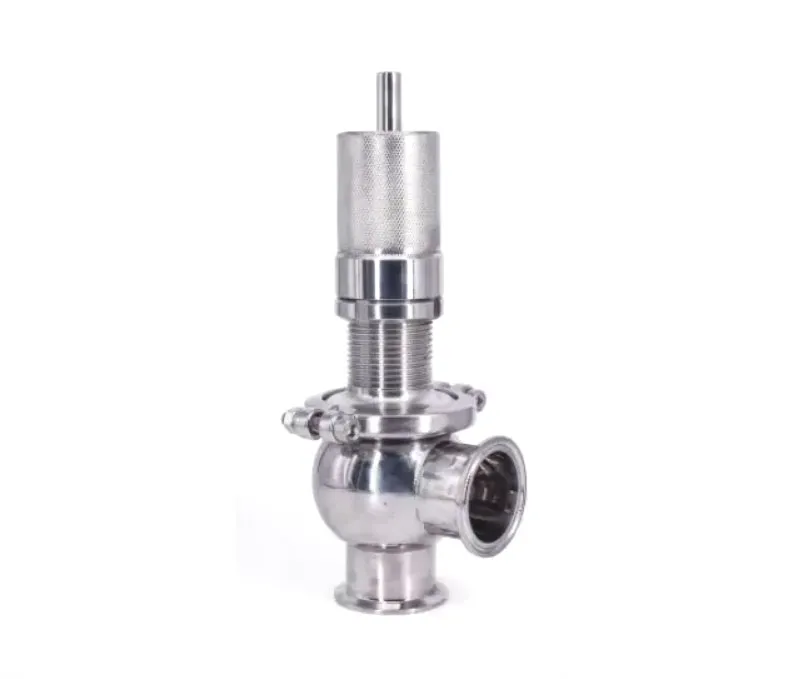

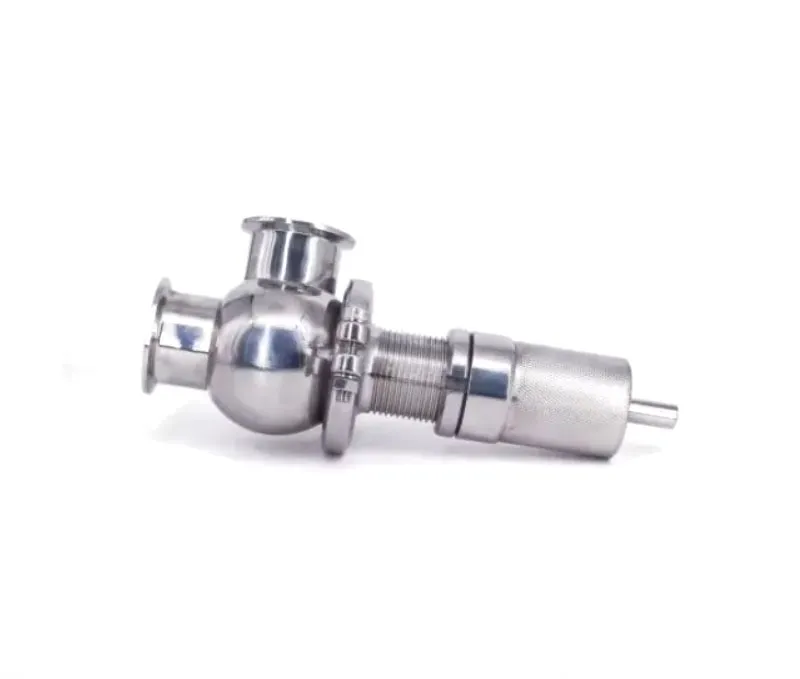

Sanitary Safety Relief Valve

Size available: 1″, 1 1/2″, 2″ 2 1/2″, 3″, 4″ Max. operating pressure: Spring adjustable Max. Temperature: 121℃ (EPDM)/ 250°F
Size3/4″-4″.
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
TemperatureMax 150 ℃ (Silicone)
Max pressure40psi (3bar)
Product Description

Safety Relief valve with spring return are continuously adjustable.Exactly adjustable to the desired opening pressure, the valves are closed and opened very sensitively with low differential pressure.

spunding valve are available both in open design(free blowing-off of CO ) and in closed design with pipe connection.

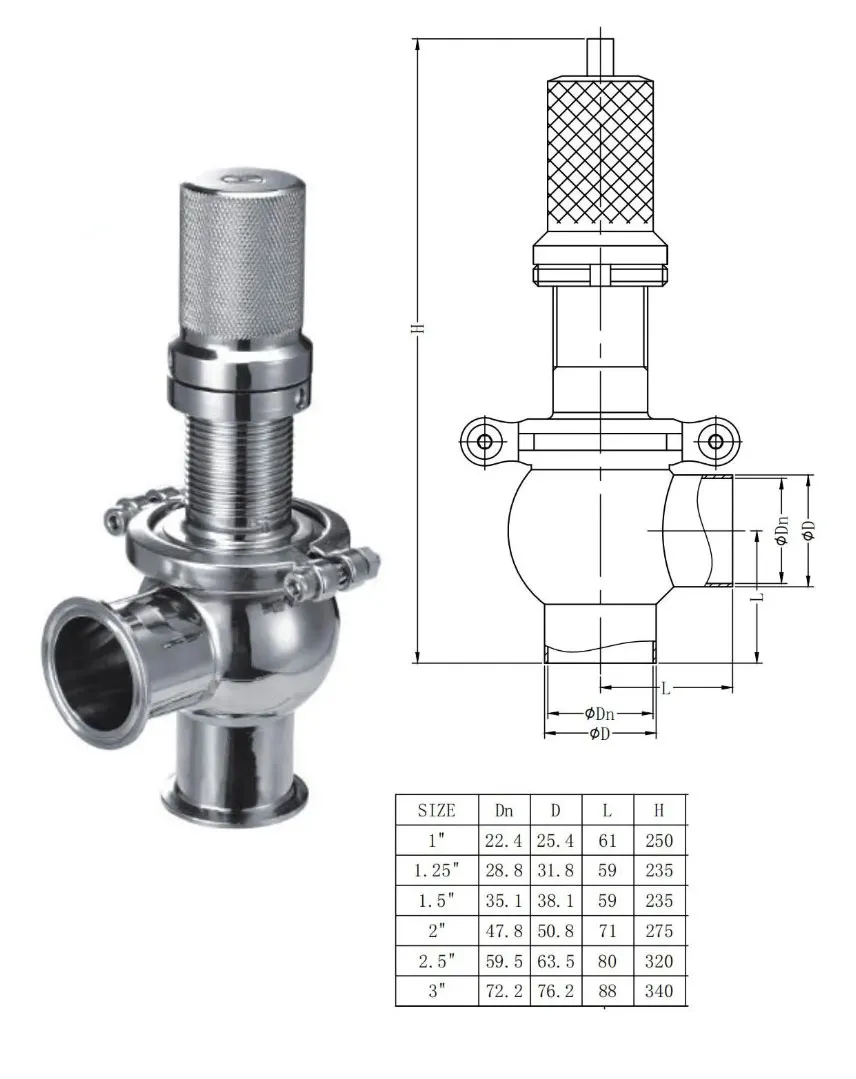

Rreference data
Size 3/4″-4″.
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature Max 150 ℃ (Silicone)
Max pressure 40psi (3bar)
Seal EPDM, Silicone
