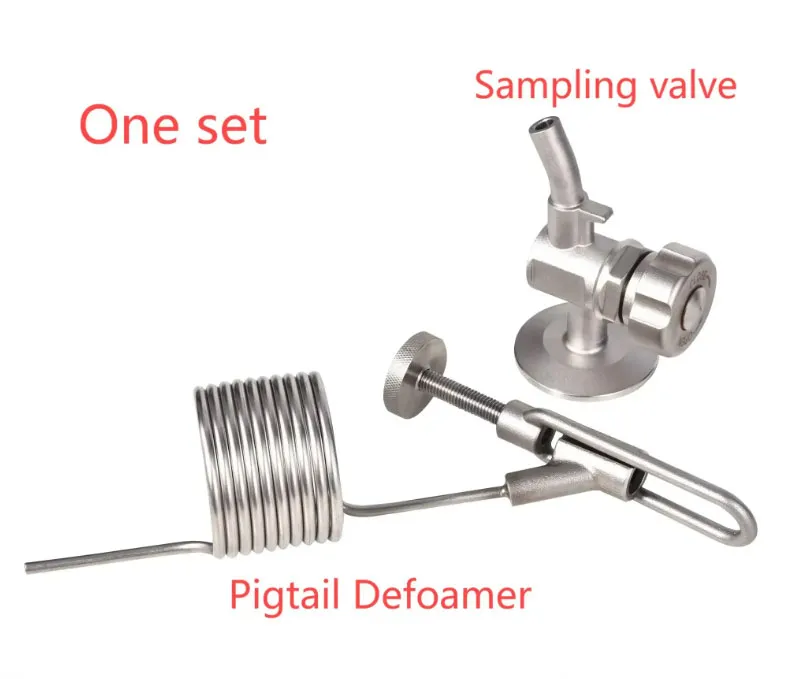

Beer Brewing Perlick Sampling Valve

A Beer Sample Valve is a type of sampling valve used primarily in the brewing industry to extract small quantities of beer from fermentation tanks, conditioning tanks, or other vessels for quality control and testing purposes.
SizeOD50.5mm
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Max pressure145psi (10bar)
SealEPDM, Silicone, PTFE
Product Description

A Beer Sample Valve is a type of sampling valve used primarily in the brewing industry to extract small quantities of beer from fermentation tanks, conditioning tanks, or other vessels for quality control and testing purposes.

Rreference data

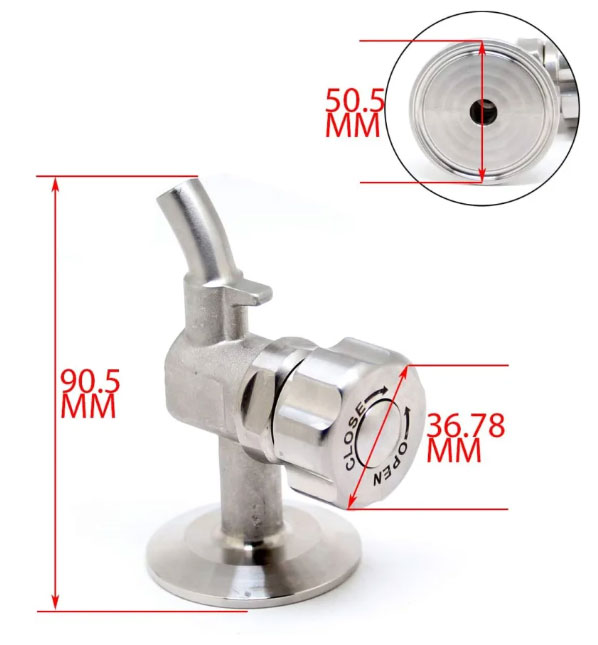

Size OD50.5mm
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature 14°F to 248°F (-10°C to 120°C),
Max pressure 145psi (10bar)
Seal EPDM, Silicone, PTFE



Operating principle: when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the,hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.
