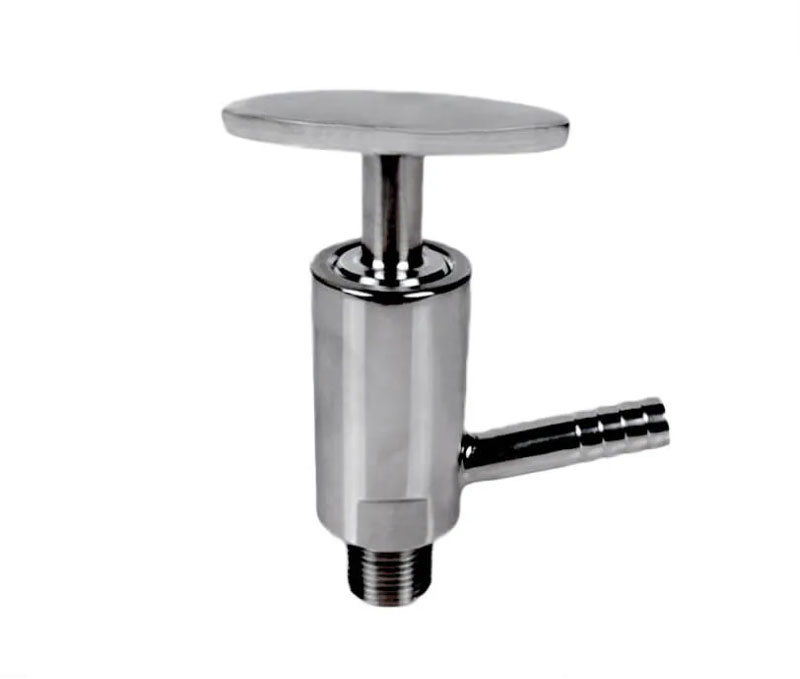

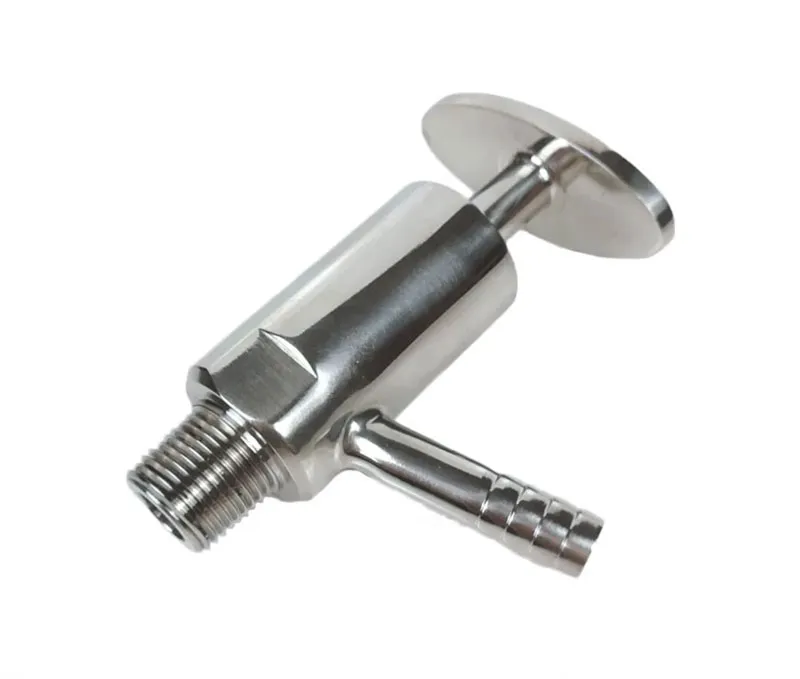

Sanitary Thread Sample Valve

Sample Valve is mainly applied to extract the sample from tank or pipeline. They can also be assembled at the bottom of the tank or piping to drain away from the remains. Constructed from hygienic stainless steel.
Size1/4″-1.5″. Or Customized
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Max pressure145psi (10bar)
Thread StandardNPT, BSP, G Thread
Product Description

Sample Valve is mainly applied to extract the sample from tank or pipeline. They can also be assembled at the bottom of the tank or piping to drain away from the remains. Constructed from hygienic stainless steel.

Rreference data

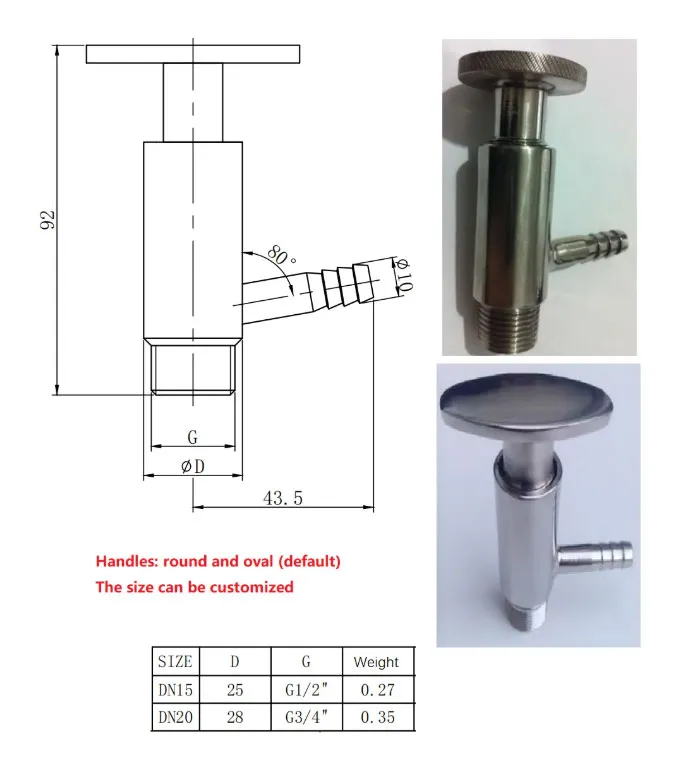

Size 1/4″-1.5″. Or Customized
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature 14°F to 248°F (-10°C to 120°C), Max 220 ℃ (PTFE)
Max pressure 145psi (10bar)
Thread Standard NPT, BSP, G Thread
Seal EPDM, Silicone, PTFE



Operating principle:when turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for sampling. When turn the,hand wheel anti-clockwise, the valve shaft and seal go down,at that time, the valve is closed.
