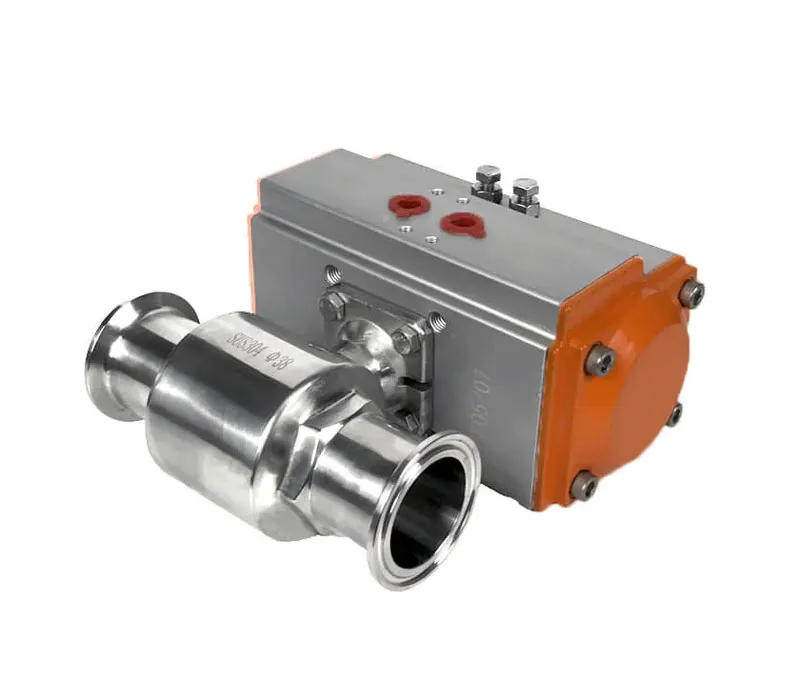

Pneumatic Actuated Ball Valve

Aohoy Sanitary 304 316 Stainless Steel Pneumatic Actuated two threee 2 3 way Food Grade Ball Valve
SizeDN25-DN100, 1/2″-6″
Body&Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Max Temperature430F (220°C)
Max pressureMax. 800kPa(8 bar)/ 115 psi
Product Description

Two Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. The hygienic design is widely used in the field of food processing, beverages, fruit juices, wine.

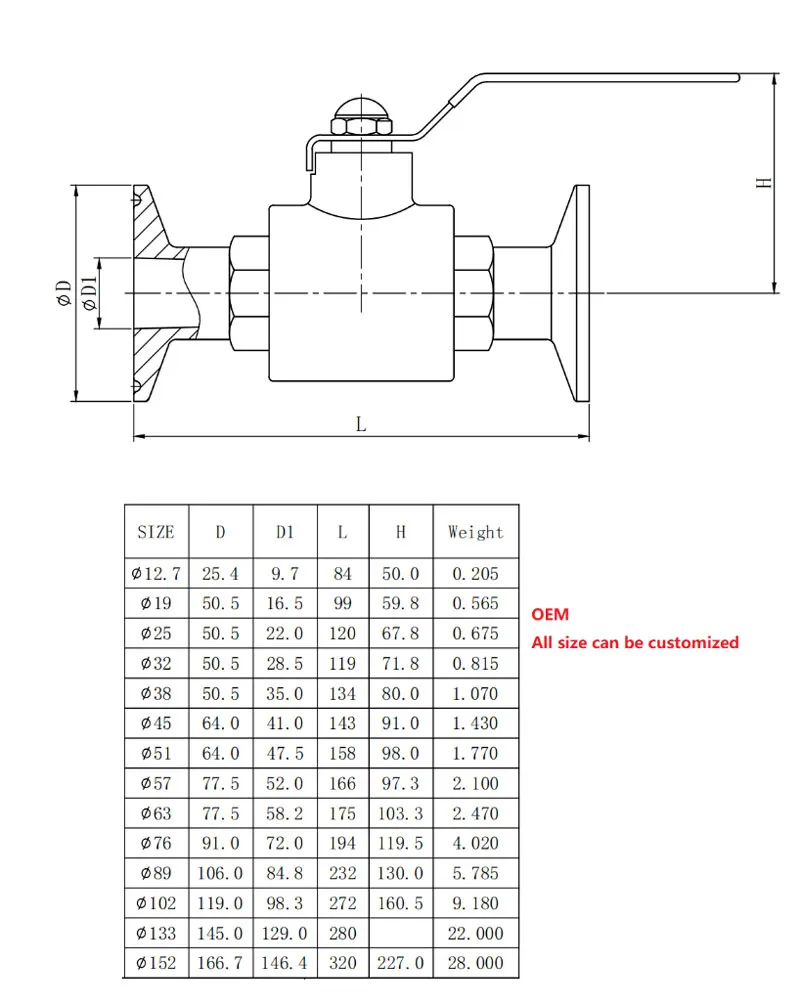

Rreference data
Size DN25-DN100, 1/2″-6″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Max Temperature 430F (220°C)
Max pressure Max. 800kPa(8 bar)/ 115 psi
Seal PTFE
Manual Operation Pull handle
Pneumatic Operation Compatible with Single-acting or Double-acting Pneumatic actuator
Connection type Tri clamp End
