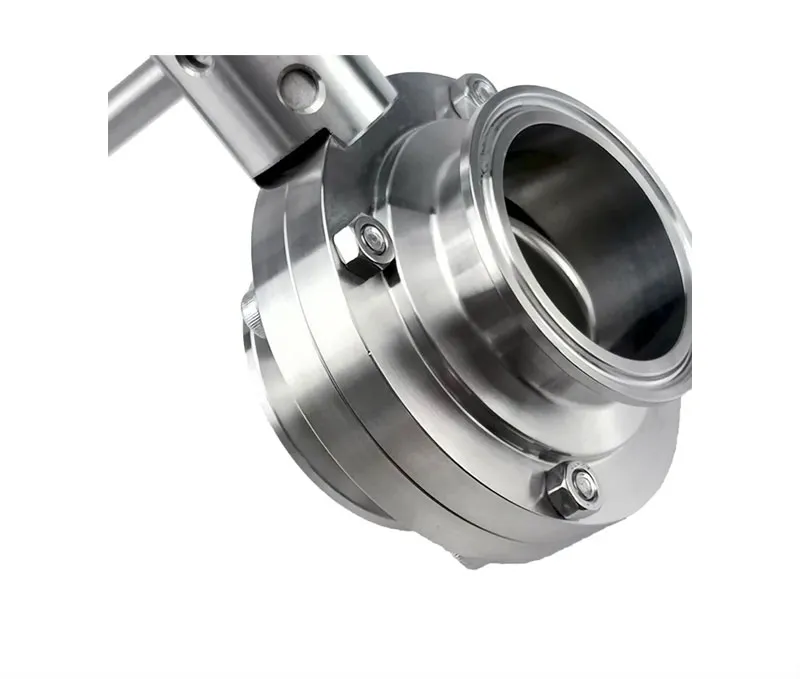

Sanitary Tri Clamp Butterfly valve

Aohoy dairy food grade ss 304 316 sanitary stainless steel tri clover clamp manual butterfly valve
SizeDN10-DN300, 1/2″-12″
Body & Disc MaterialAISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature-20℃ to +220 ℃ (It depends on the seal)
Max Pressure145psi (10bar)
Connection TypeClamp End, Thread End, Weld End
Product Description

Either remotely controlled by an actuator or manually operated with a handle, Designed to provide years of dependable service in sanitary stainless steel fluid handling systems.

Rreference data

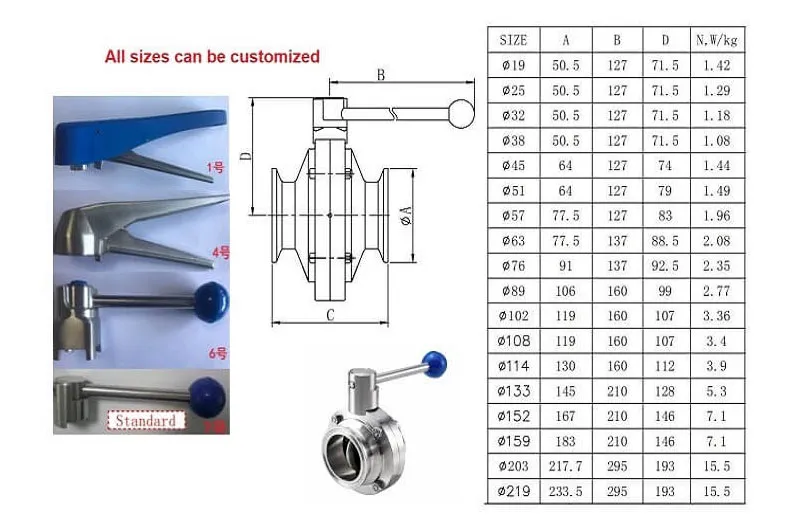

Size DN10-DN300, 1/2″-12″
Body&Disc Material AISI 304 or 316L, (EN1.4301/EN1.4404).
Temperature -20℃ to +220 ℃ (It depends on the seal)
Max pressure 145psi (10bar)
Seal EPDM, Silicone, FKM, TEFLON, PTFE, NBR
Pipe Joint Systems DIN SMS RJT 3A ISO IDF

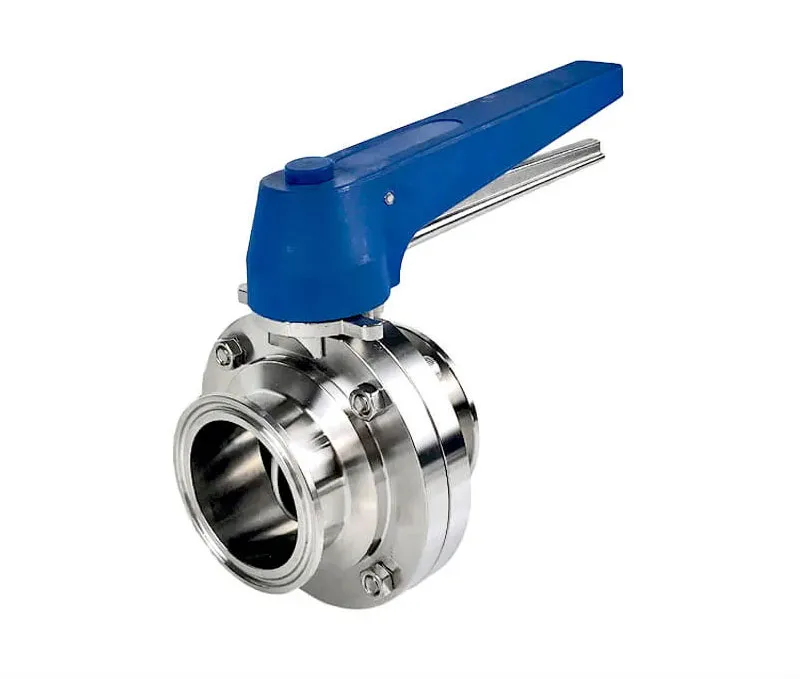

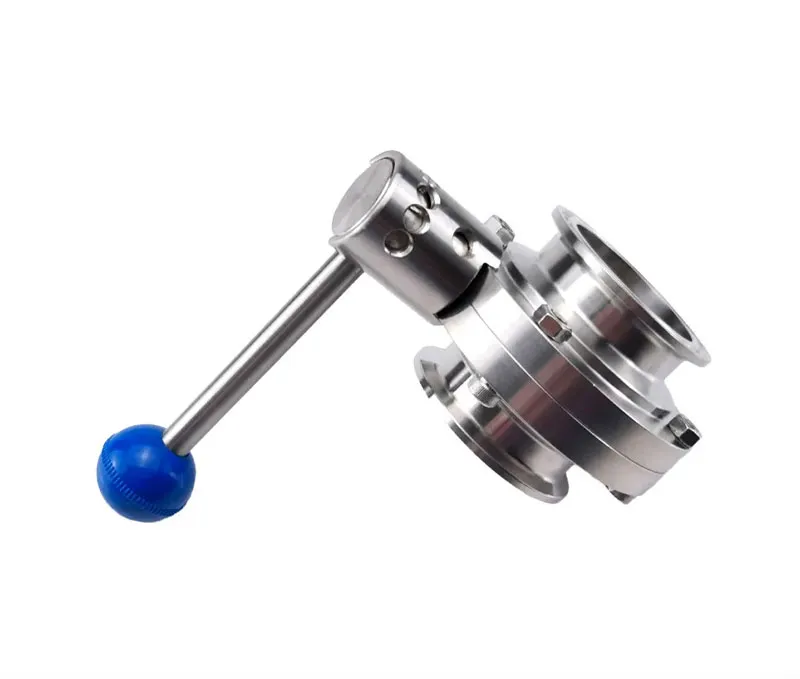

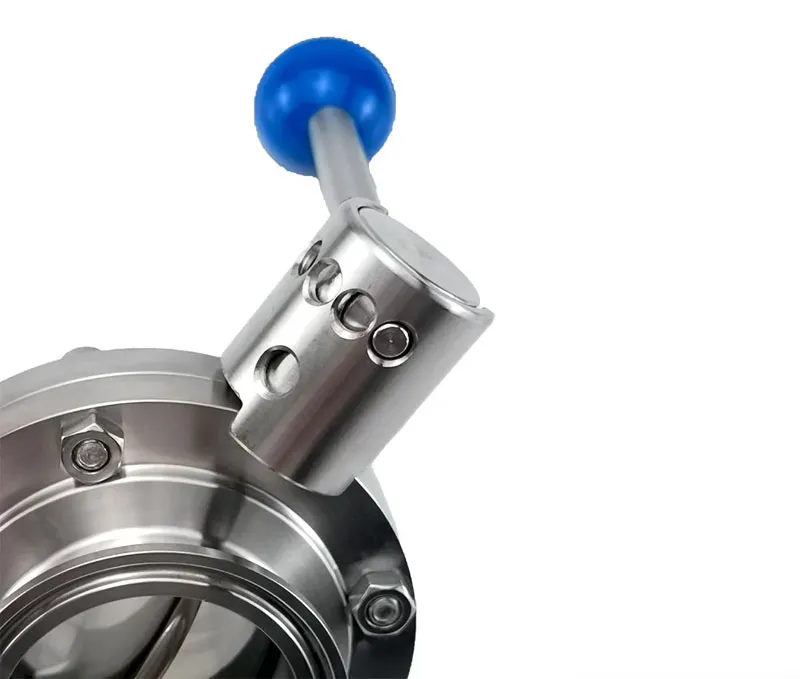

Manual Operation Pull handle, Multi-position Plastic handle, Multi-position Stainless Steel Handle

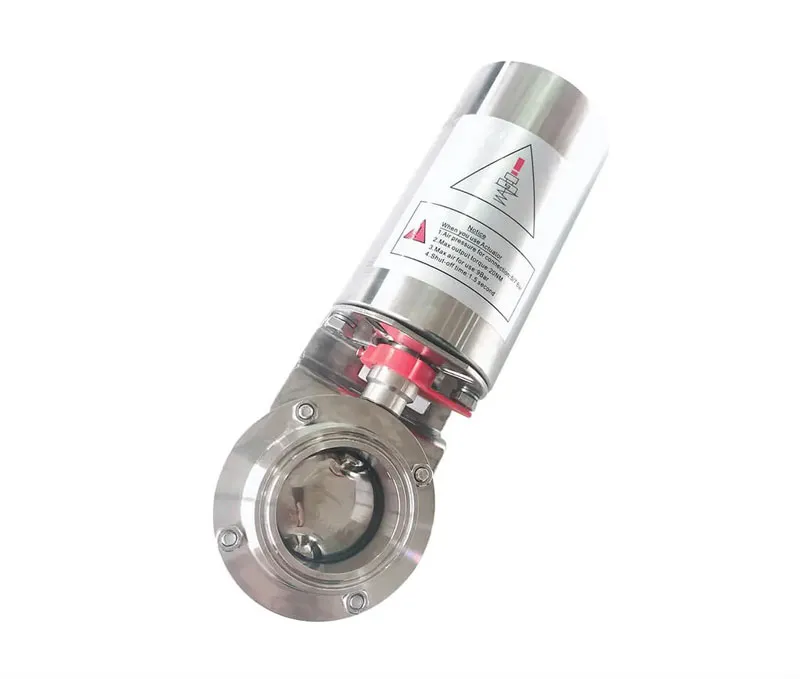

Pneumatic Operation Compatible with Single-acting, Double-acting Pneumatic actuator
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type Clamp End, Thread End, Weld End
