• Plastic  wheel or stainless steel wheel

• Material: AISI304(1.4301)/316L(1.4404)

• Internal surface Ra 0.5 μm-0.8μm

• External surface polishing finish, matt finish or sand-blasting finish

• Height:  80- 150mm

Application

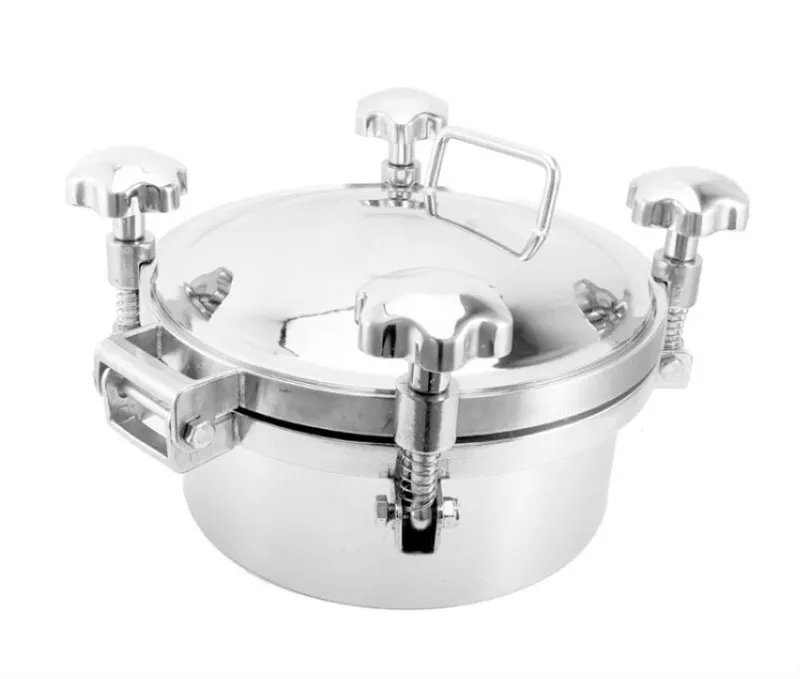

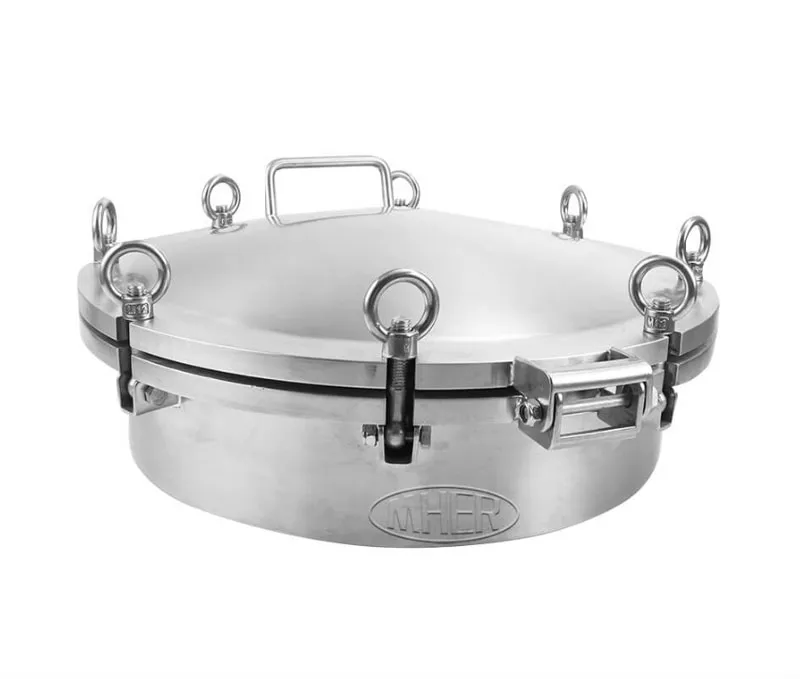

Manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.

Materials

Body Materials: AISI-304 or AISI-316L

Gasket Material:Silicon, EPDM, FRM

Manhole seat and gasket  comply with FDA 21CFR177.2600

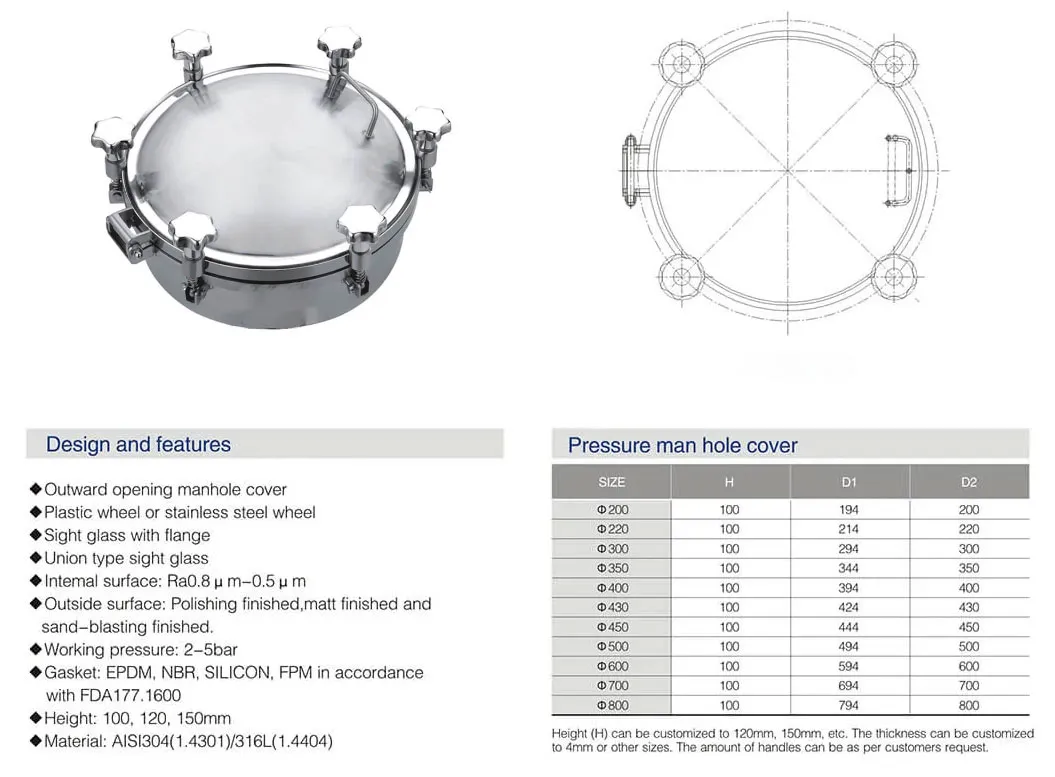

Standard Design

Available in size from 200mm to 800mm

Standard thickness: 3mm

Outward Opening

Self-sealing double lip seal to prevent fluids spraying out.

Technical Specification

Max. pressure: 2-5 bar

Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

Surface treatment: mirror and matt inside outside
