Sanitary Shadowless Manhole Cover

Aohoy ss 304 316 sanitary Stainless Steel tank Inwards Shadowlessl manway Manhole cover
Intemal surfaceRa 0.8 μm-0.5μm
Height100-200mm
MaterialAISI304(1.4301)/316L(1.4404)
Get a Quote
Sanitary Shadowless Manhole Cover
Product Description

• Stainless steel wheel

• Material: AISI304(1.4301)/316L(1.4404)

• Internal surface Ra 0.8 μm-0.5μm

• External surface polishing finish, matt finish or sand-blasting finish

• Height:  100-200mm



Application

Manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access to the interior of the tank required.



Materials

Body Materials: AISI-304 or AISI-316L

Gasket Material:Silicon, EPDM, FRM

Manhole seat and gasket  comply with FDA 21CFR177.2600

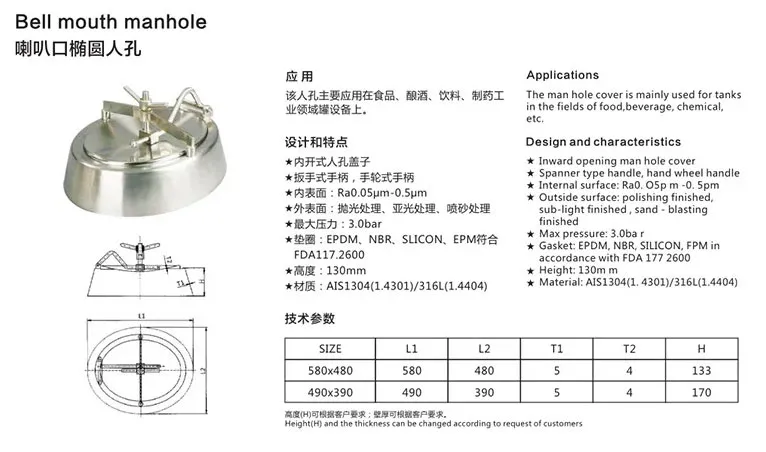

Standard Design

Available in size: 580mm to 480mm

Standard thickness: 8mm

Outswing Opening

Self-sealing double lip seal to prevent fluids spraying out.

Technical Specification

Max. pressure: 3 bar

Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

Surface treatment: mirror and matt inside outside

Rreference data
