Sanitary Flanged Sight Glass

Name: Sanitary Flanged Sight Glass
Brand: Aohoy
SKU: 00056
Rating: 4.1 (78 reviews)

Aohoy high pressure stainless steel ss304 ss316l sanitary tubular circular flanged Sight glass

MaterialStainless Steel 304, 316L (1.4301/1.4404).

Connection typeButt Weld, Tri-clamp, Thread end

Connection SizeAvailable in size from 2″-8″, DN50-DN200

Max Pressure10 bar (145PSI)

Get a Quote

Product Description

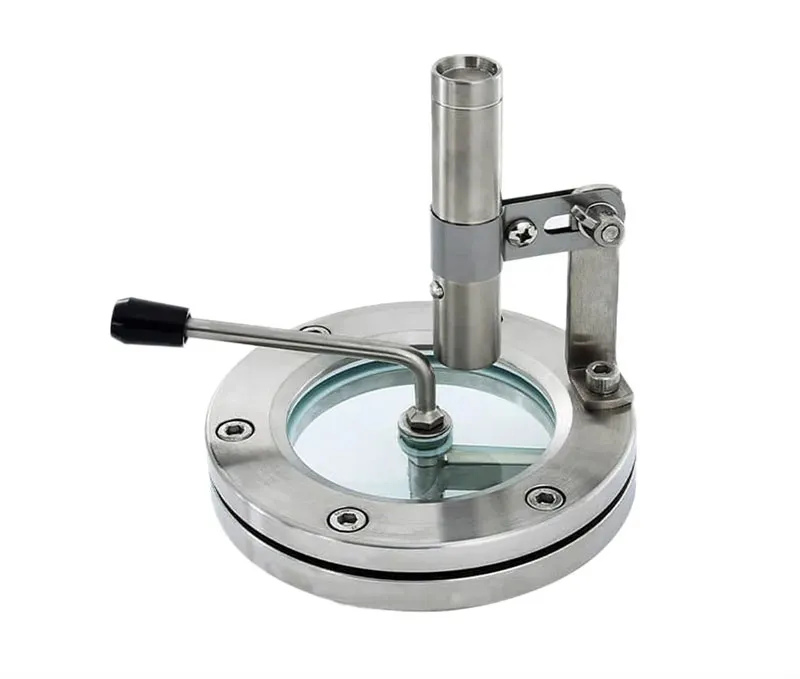

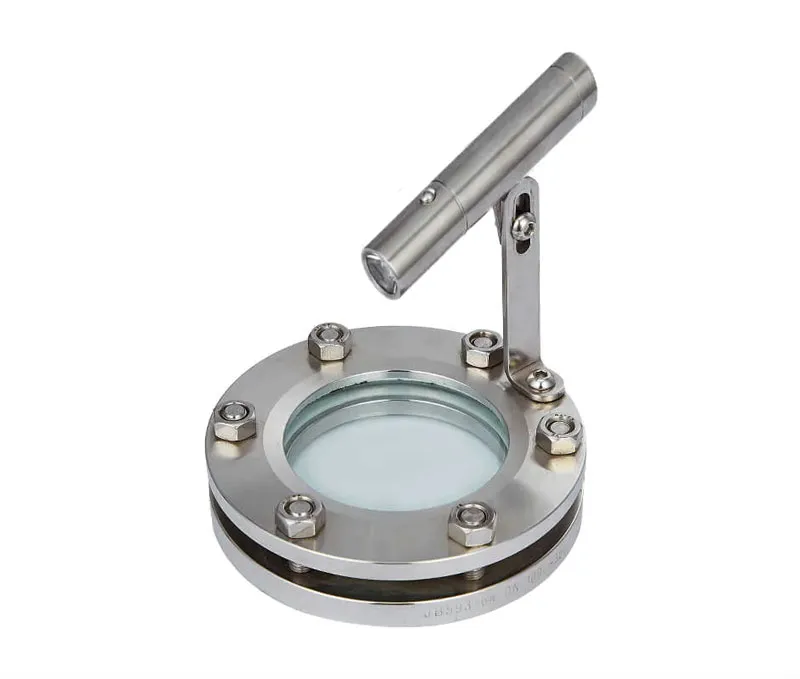

Flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

• Available in size from 1″-4″, DN25-DN100 or others upon requirement

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

• End connections: butt-welded, sanitary clamp, or others upon request

• Vertical or horizontal installation

Sanitary Sight Glasses, include straight sight glass, aseptic sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel, borosilicate glass for work temperature up to 120-220 degree (PTFE,silicone,EPDM,Viton), resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries etc.

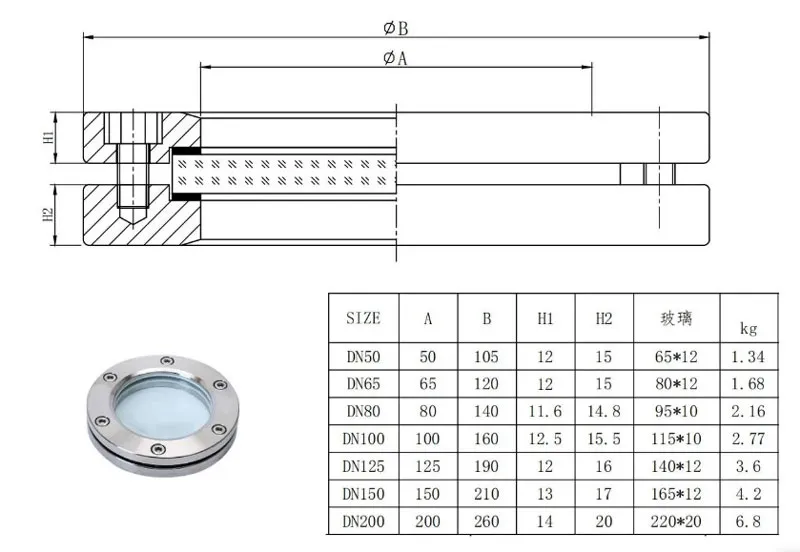

Rreference data

Material	Stainless Steel 304, 316L (1.4301/1.4404).
Connection type	Butt Weld, Tri-clamp, Thread end
Connection Size	Available in size from 2″-8″, DN50-DN200 or others upon requirement
Max Pressure	10 bar (145PSI)
Working temperature	-20～220°C (PTFE)
Surface treatment	CNC machined Ra<0.8μm
