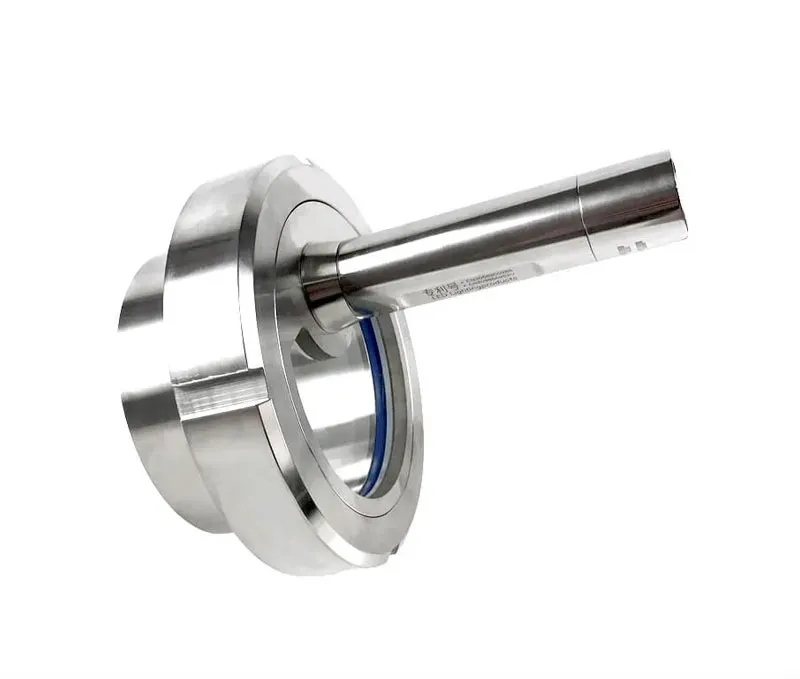

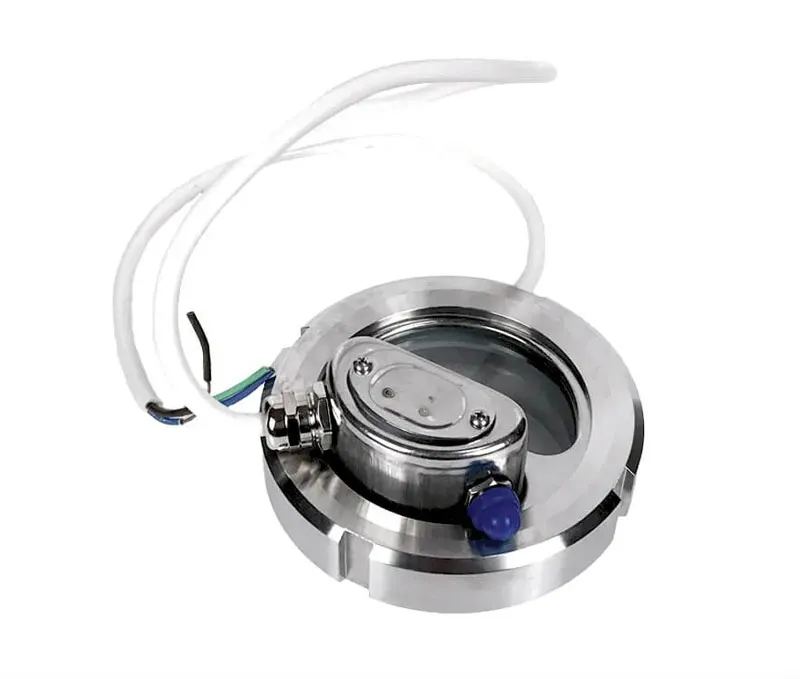

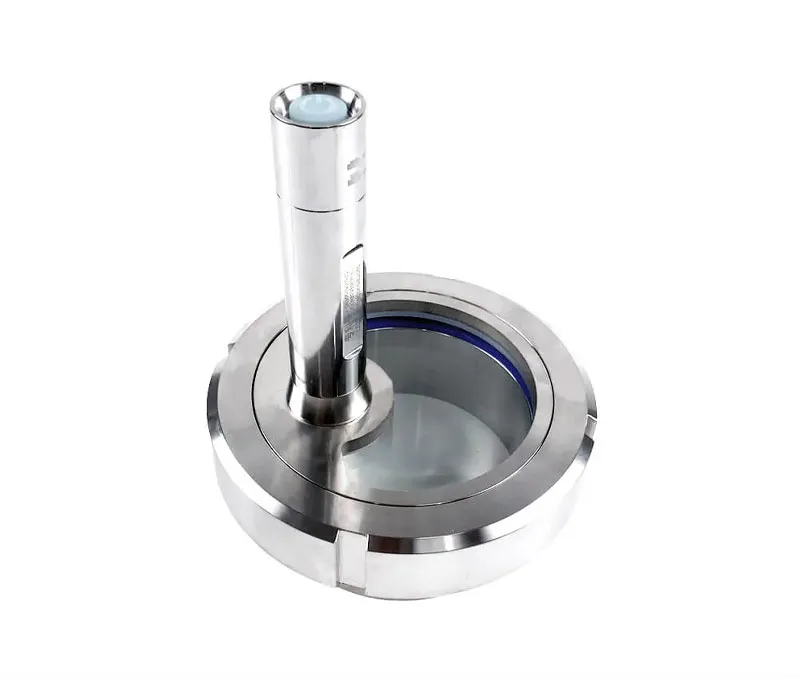

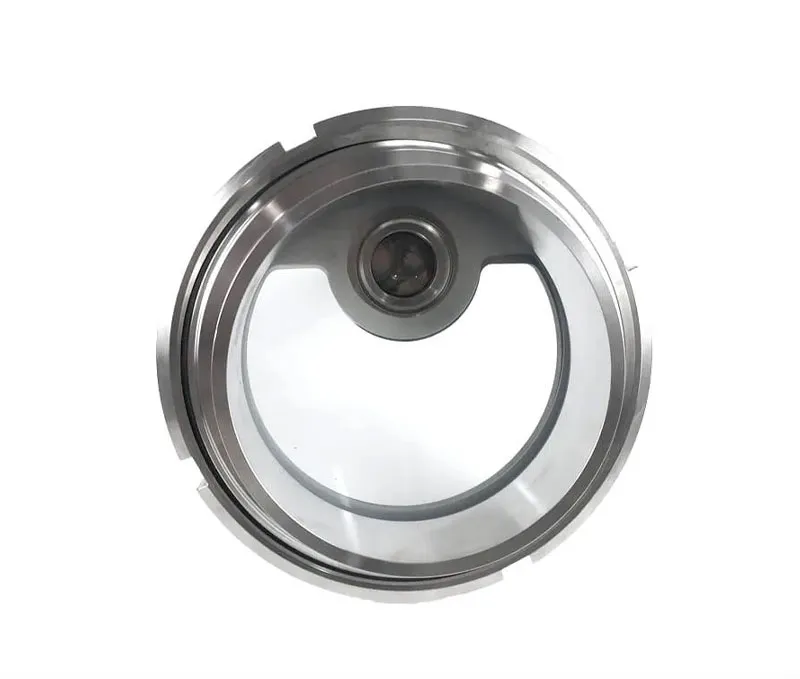

Sanitary Sight Glass With Lamp

Name: Sanitary Sight Glass With Lamp
Brand: Aohoy
SKU: 00057
Rating: 4.1 (79 reviews)

Aohoy SS304 SS316L sanitary stainless steel din brewery union type round sight glass with ptfe gasket

MaterialStainless Steel 304, 316L (1.4301/1.4404).

Connection typeButt Weld, Tri-clamp, Thread end

Connection SizeAvailable in size from 1″-4″, DN25-DN100

Max Pressure10 bar (145PSI)

Get a Quote

Product Description

Sanitary Sight glass Standard Design

• Available in size from 1″-4″, DN25-DN100 or others upon requirement

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

• End connections: butt-welded, sanitary clamp, or others upon request

• Vertical or horizontal installation

• 360 degree view angle

Sanitary Sight Glasses, include straight sight glass, aseptic sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel, borosilicate glass for work temperature up to 120-220 degree (PTFE,Viton), resistant pressure up to 10bar, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries etc.

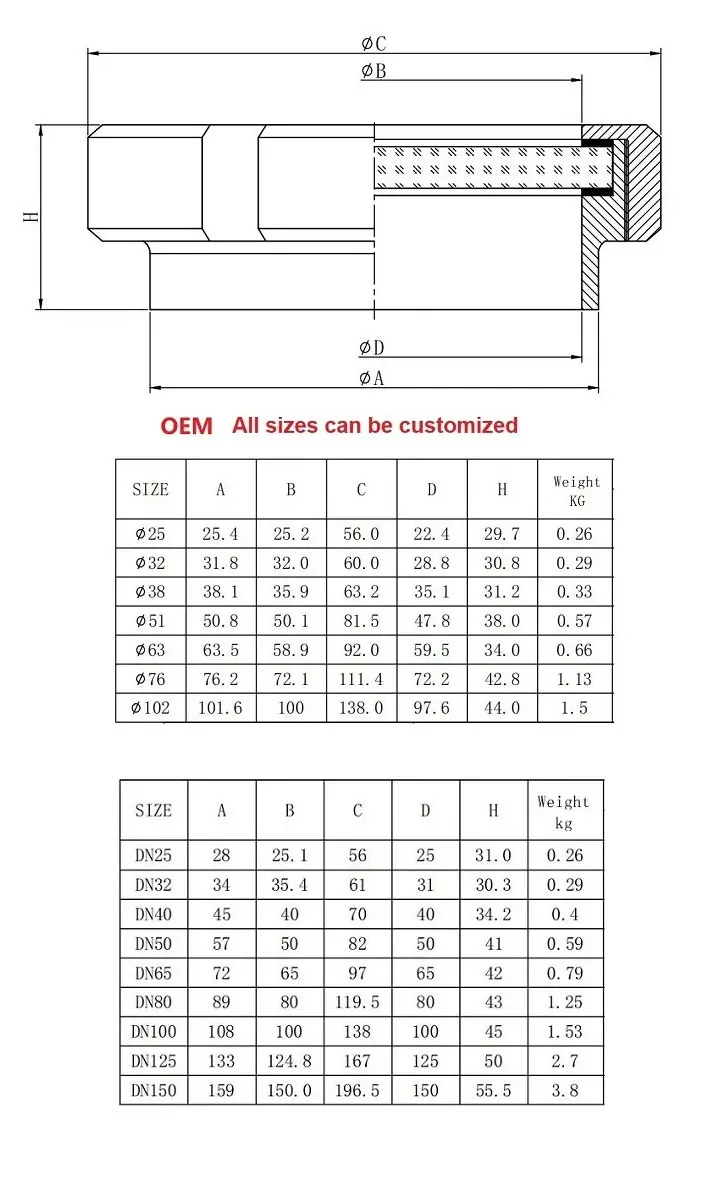

Rreference data

Material	Stainless Steel 304, 316L (1.4301/1.4404).
Connection type	Butt Weld, Tri-clamp, Thread end
Connection Size	Available in size from 1″-4″, DN25-DN100 or others upon requirement
Max Pressure	10 bar (145PSI)
Working temperature	-20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE)
Surface treatment	CNC machined Ra<0.8μm
