Sanitary Thread Sight Glass

Name: Sanitary Thread Sight Glass
Brand: Aohoy
SKU: 00059
Rating: 4.1 (80 reviews)

Aohoy 304 316L sanitary stainless steel thread sight glass

MaterialStainless Steel 304, 316L (1.4301/1.4404).

Connection typeButt Weld, Tri-clamp, Thread end

Connection SizeAvailable in size from 1″-4″, DN25-DN100

Max Pressure10 bar (145PSI)

Get a Quote

Product Description

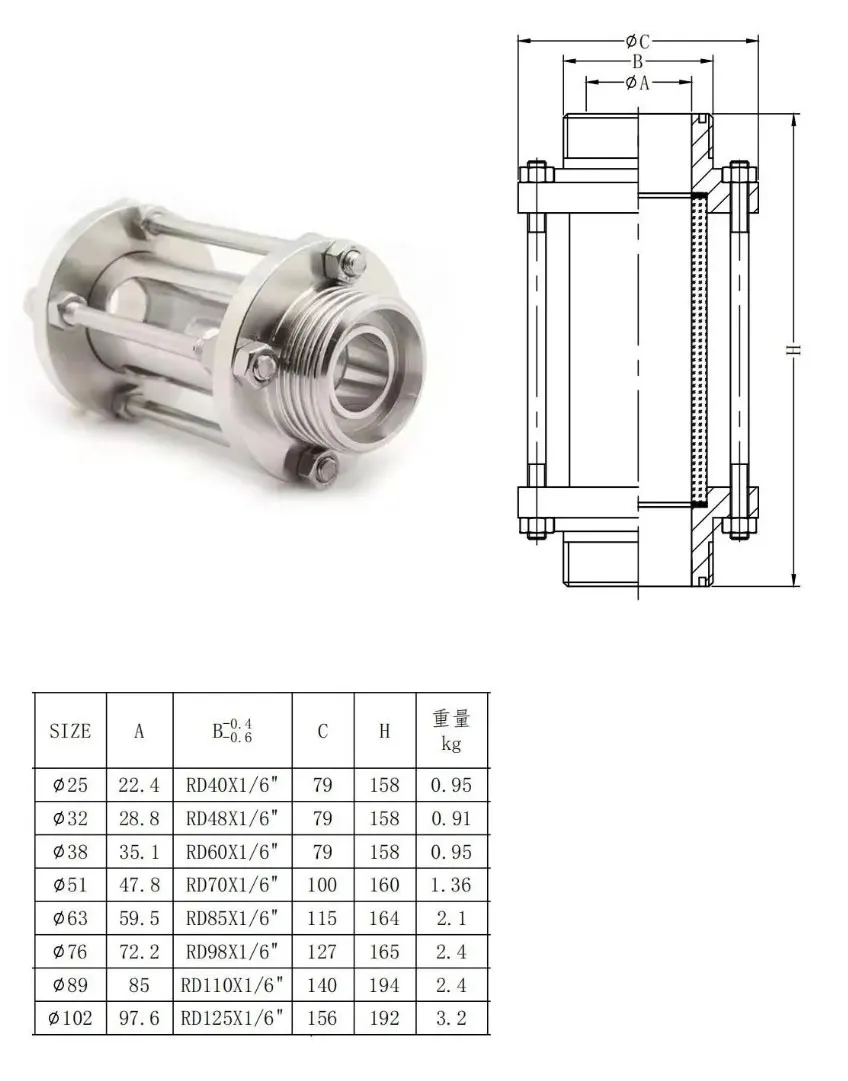

Sanitary Sight glass Standard Design

Available in size from 1″-4″, DN25-DN100 or others upon requirement

Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

End connections: butt-welded, sanitary clamp, or others upon request

Vertical or horizontal installation

360 degree view angle

Sanitary Sight Glasses, include straight sight glass, aseptic sight glass, union sight glass, tri-clamp sight glass, four-way sight glass, flange sight glass. Constructed from hygienic stainless steel, borosilicate glass for work temperature up to 120-220 degree (PTFE,silicone,EPDM,Viton), resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries etc.

Rreference data

Material	Stainless Steel 304, 316L (1.4301/1.4404).
Connection type	Butt Weld, Tri-clamp, Thread end
Connection Size	Available in size from 1″-4″, DN25-DN100 or others upon requirement
Max Pressure	10 bar (145PSI)
Working temperature	180°C (Silicone), 150°C (EPDM), 220°C (PTFE)
Surface treatment	CNC machined Ra<0.8μm
