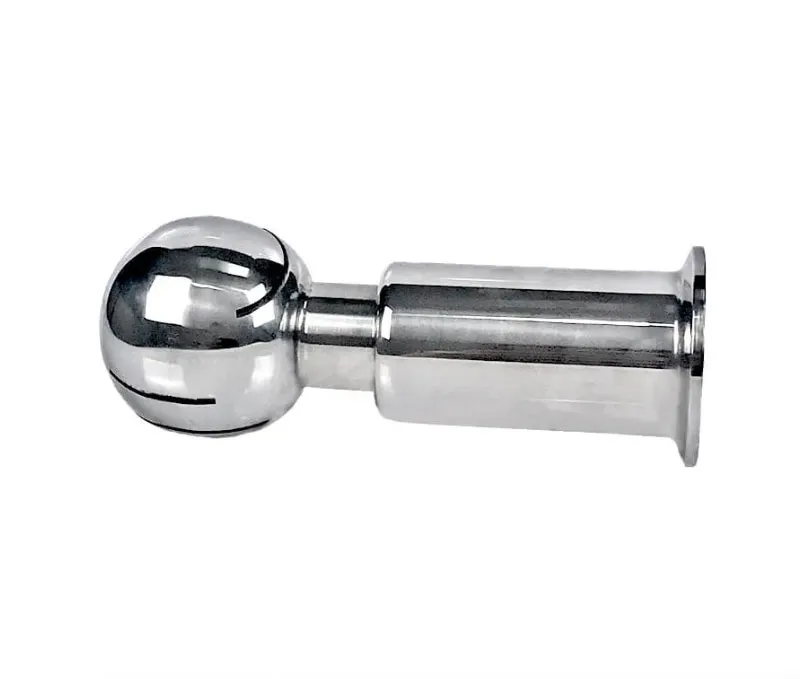

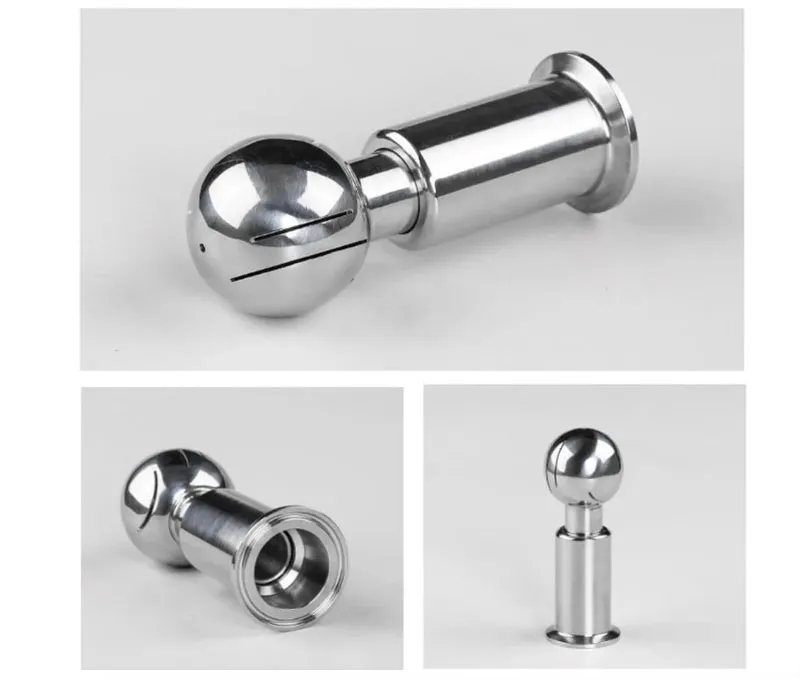

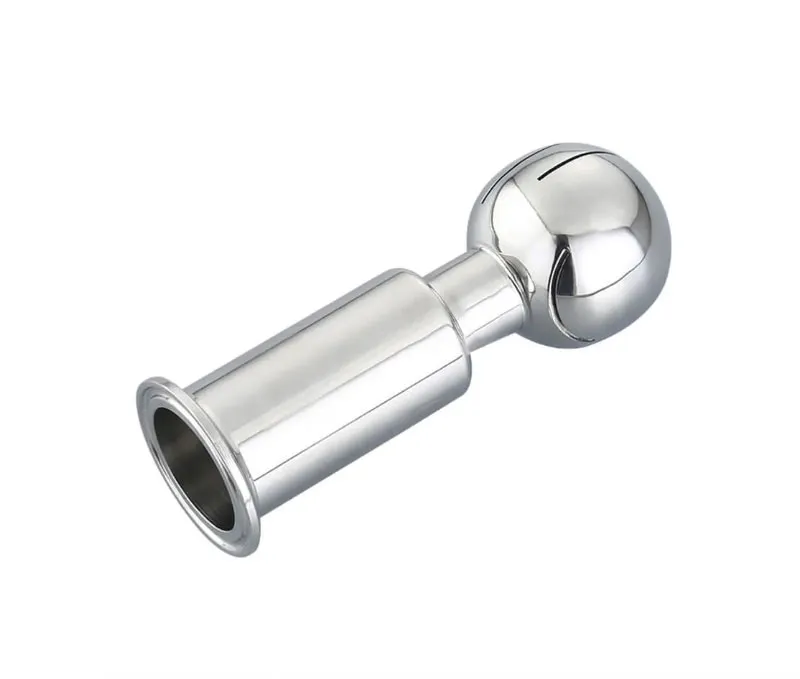

Sanitary Rotary Spray Tri Clamp Cleaning Ball

Aohoy stainless steel 304 316L clamp connect sanitary rotary spray tank cleaning ball for homebrew
MaterialStainless Steel 304, 316L (1.4301/1.4404).
Connection typeButt Weld, Tri-clamp, Thread end
Connection SizeAvailable in size from 3/4″-2″
Max Pressure5 bar (75PSI)
Get a Quote
Sanitary Rotary Spray Tri Clamp Cleaning Ball
Product Description

Rotary Spray Tri-Clamp Cleaning Ball is a specialized cleaning device used in Clean-In-Place (CIP) systems for tanks, vessels, and piping in industries like food & beverage, pharmaceuticals, and chemical processing. It provides efficient and thorough cleaning by spraying pressurized liquid in a rotating pattern.



Rotary Spray Mechanism

The ball rotates under the force of cleaning fluid, creating a consistent 360-degree cleaning coverage.



Applications

Brewing: Cleaning fermentation tanks, bright tanks, and other vessels.

Food & Beverage: Washing mixers, storage tanks, and CIP systems.

Pharmaceuticals: Ensuring sterility in bioreactors, mixing tanks, and other equipment.

Chemical Processing: Cleaning tanks used for liquid or powder processing.

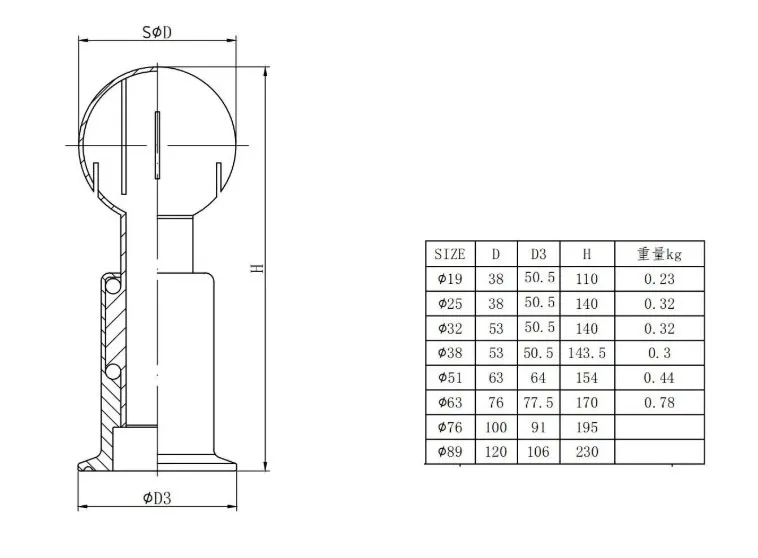

Rreference data
Material Stainless Steel 304, 316L (1.4301/1.4404).
Connection type Butt Weld, Tri-clamp, Thread end
Connection Size Available in size from 3/4″-2″
Max Pressure 5 bar (75PSI)
Working temperature 150°C (Silicone)
Surface treatment CNC machined Ra<0.8μm
