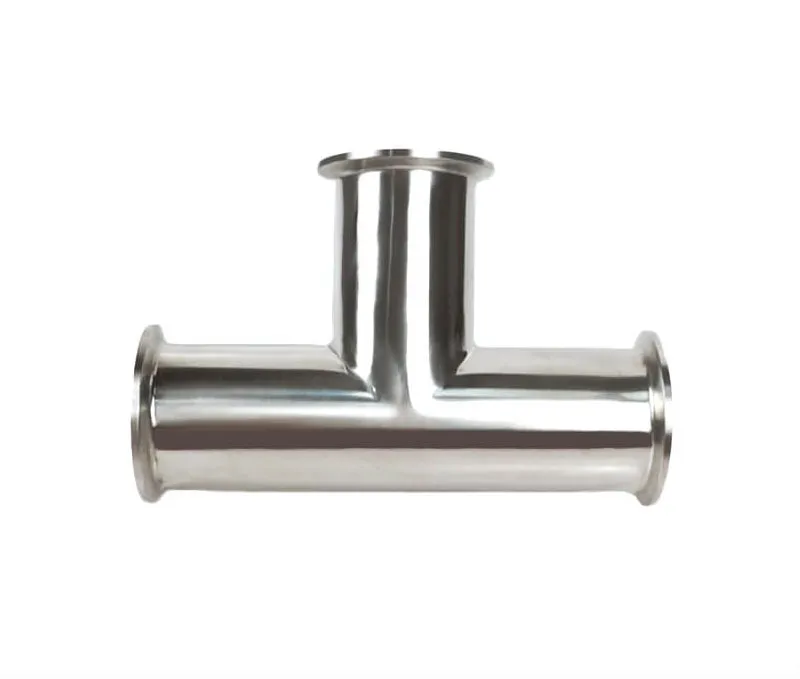

Sanitary Tri Clamp Tee

Aohoy 304 316 sanitary stainless steel pipe fitting T Connector tri clamp ferrule equal tee
MaterialStainless Steel 304, 316L
Connection TypeTri clamp
Max Pressure10 bar (145PSI)
Surface TreatmentMirror and Matte polishing
Thread standardDIN11850/DIN11851, SMS, ISO, 3A, ASME BPE
Product Description

Tee is fitting that changes the direction of the pipeline.  They usually have welded connections, clamp connections

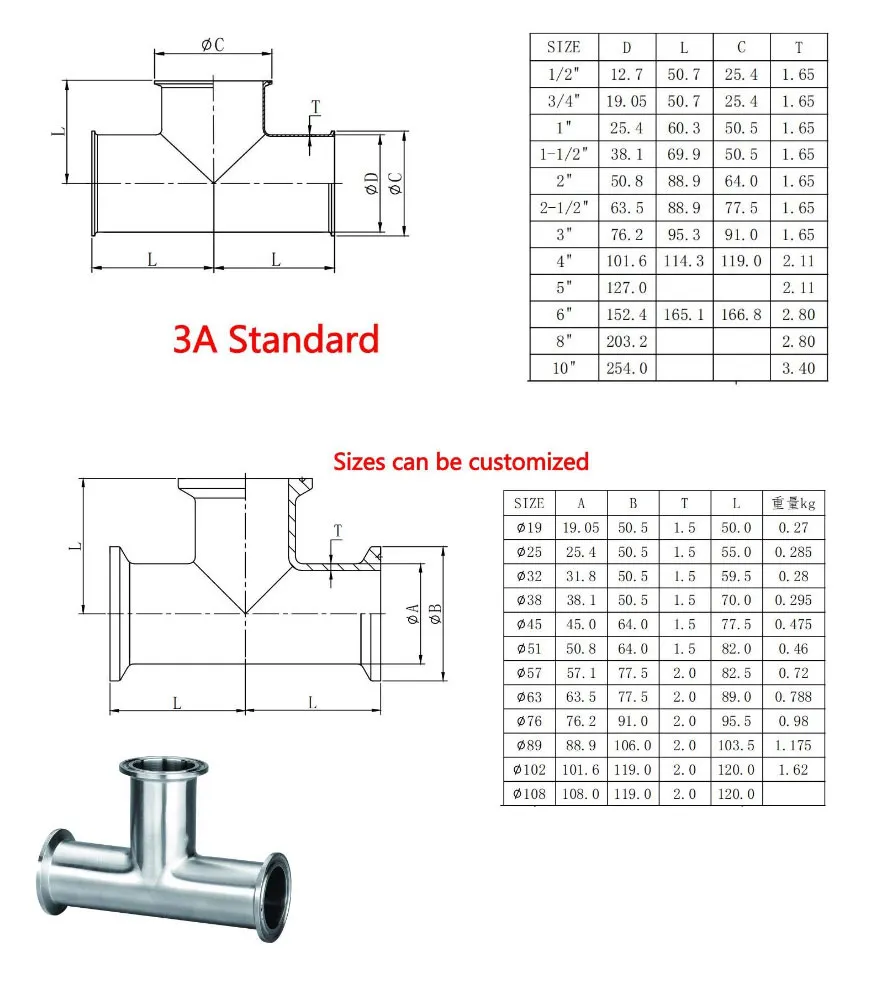

Rreference data
Material Stainless Steel 304, 316L
Connection type Tri clamp
Connection Size 0.5″ to 4″ and Customized
Max Pressure 10 bar (145PSI)
Working temperature -20-180°C (Silicone), -20- 150°C (EPDM), -20~220°C (PTFE)
Surface treatment Mirror and Matte polishing
Standard DIN11850/DIN11851, SMS, ISO, 3A, ASME BPE
