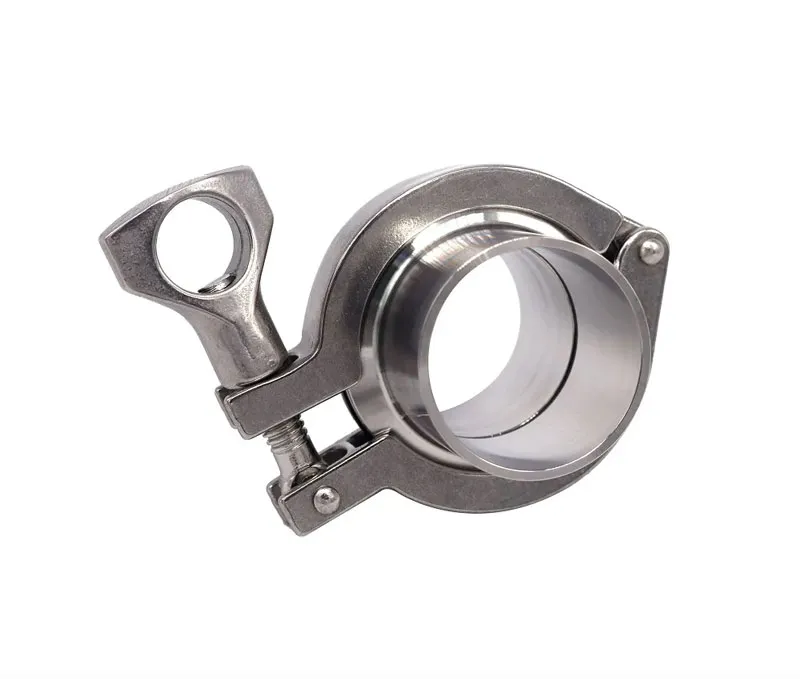

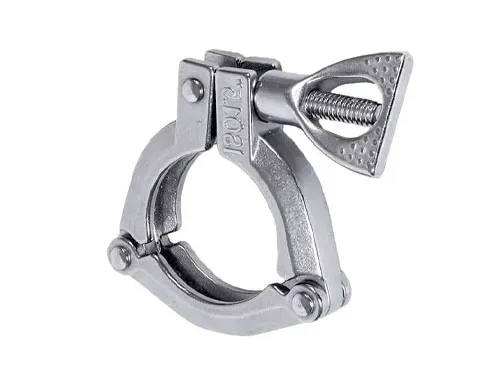

Tri Clover Clamp Ferrule Fitting

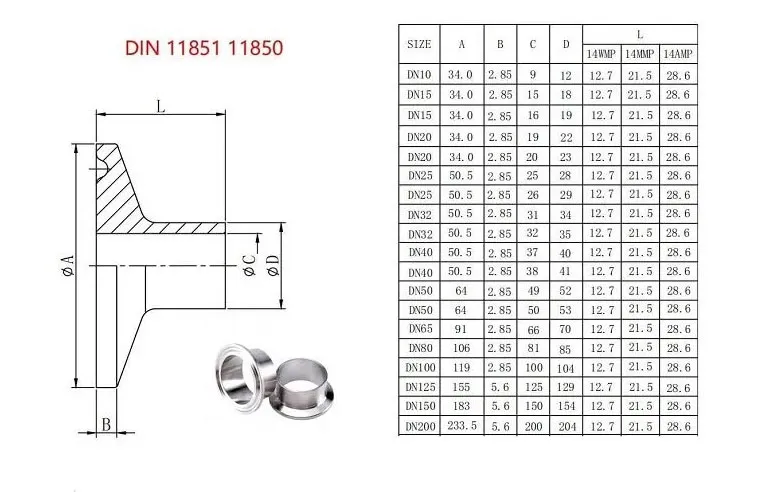

The best-selling sizes are 1 1.5 2 2.5 3 4 inches, The size standard is DIN 32767, DIN11851, DIN 11850, ISO 2857, SMS etc
MaterialStainless Steel 304, 316L
Connection TypeButt Weld, Tri-clamp
Max Pressure10 bar (145PSI)
Surface TreatmentCNC machined Ra<0.8μm
Length Standard12.7mm 21.5mm, 28.6mm, 50mm, Customized
Get a Quote

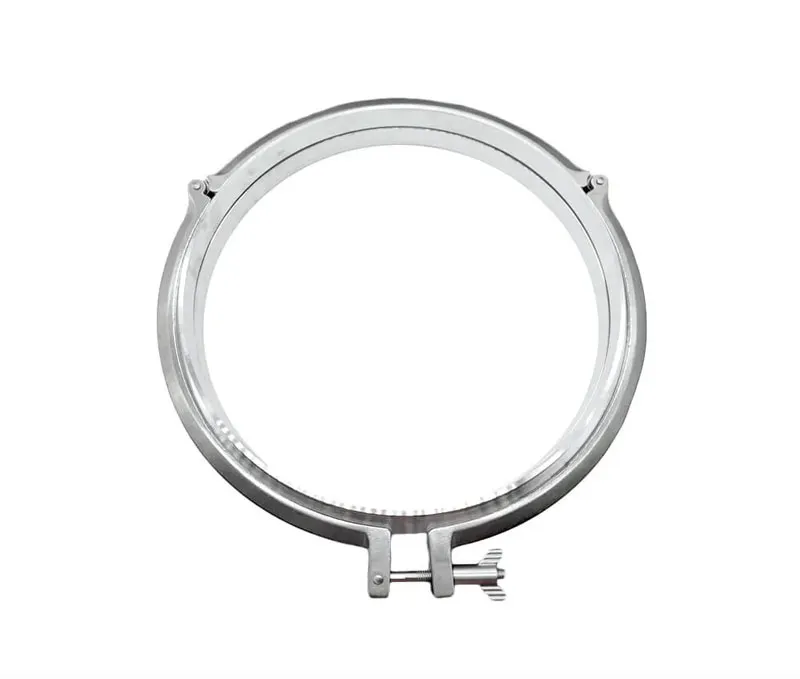

Tri Clover Clamp Ferrule Fitting
Product Description

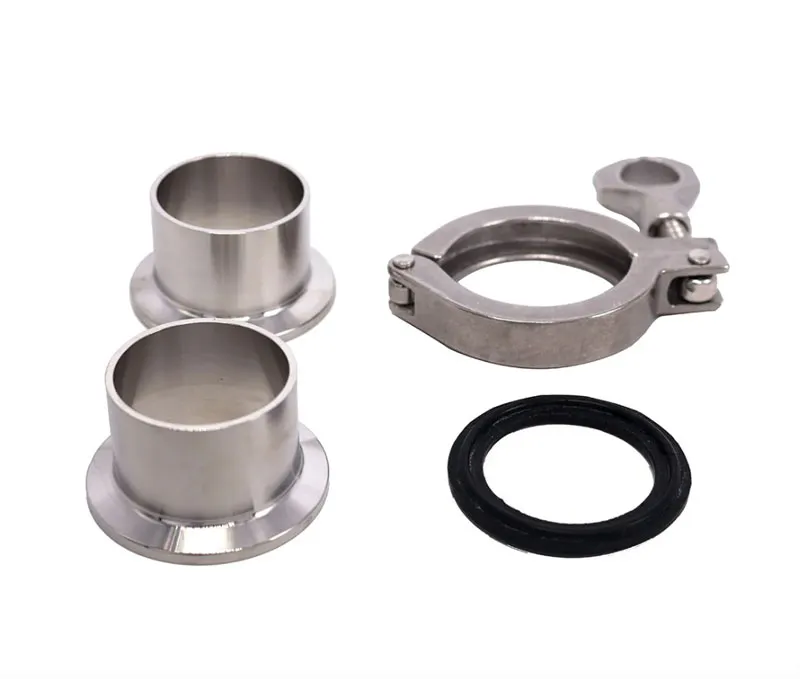

Sanitary Ferrule set are include Two weld ferrule + one tri-clamp clamp + one ferrule gasket (Silicone/EPDM/PTFE/FPM). They are used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and chemical industries.

Rreference data
Material Stainless Steel 304, 316L
Heat Lot Marked with Heat Lot Number
Connection type Butt Weld, Tri-clamp
Connection Size 0.5″ to 12″
Max Pressure 10 bar (145PSI)
Working temperature -20-180°C (Silicone), -20- 150°C (EPDM), -20～220°C (PTFE)
Surface treatment CNC machined Ra<0.8μm
Length standard 12.7mm 21.5mm, 28.6mm, 50mm, Customized length

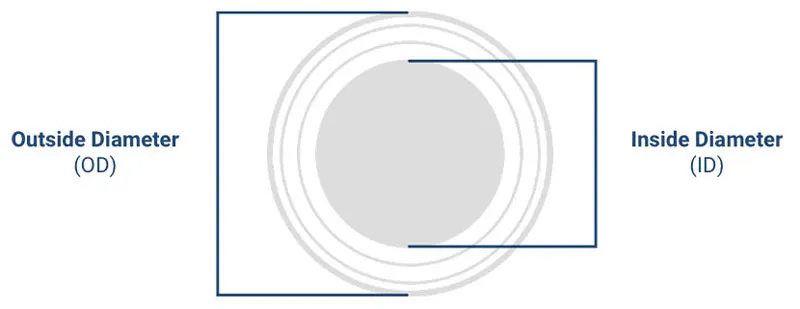

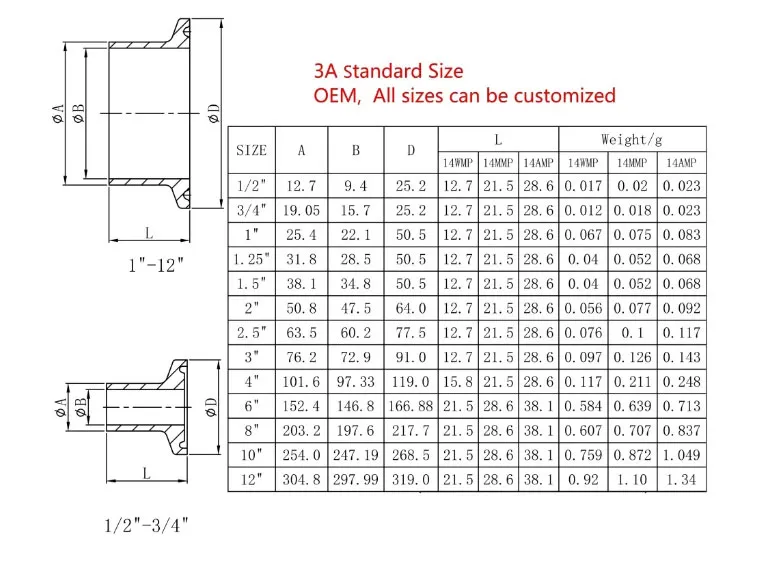

Tube Size (OD) Clamp Flange OD Tube ID
1/2″ 0.984 0.37
3/4″ 0.984 0.62
1″ 1.984 0.87
1.5″ 1.984 1.37
2″ 2.516 1.87
2.5″ 3.047 2.37
3″ 3.579 2.87
4″ 4.682 3.834
6” 6.562 5.782
8“ 8.602 7.782
10” 10.57 9.782
12“ 12.57 11.76
