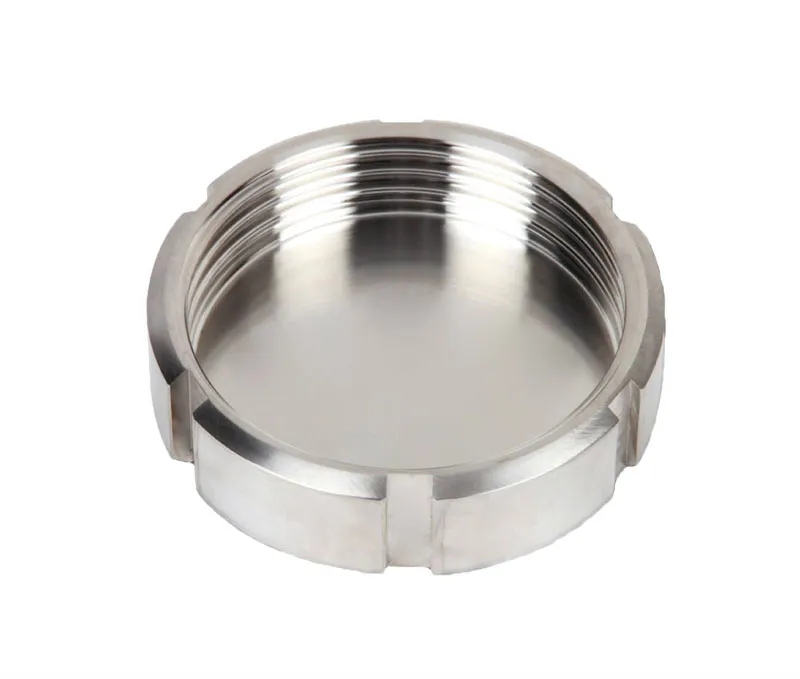

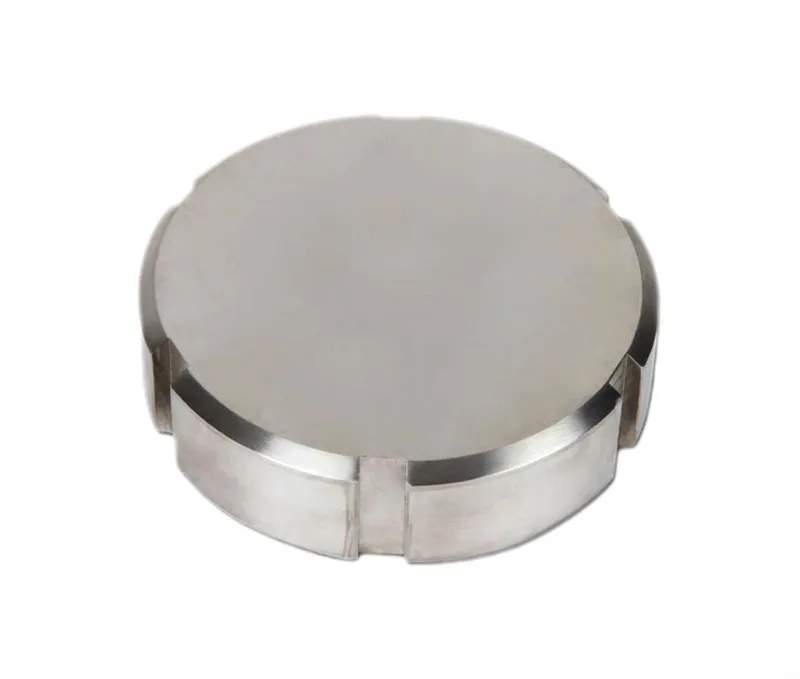

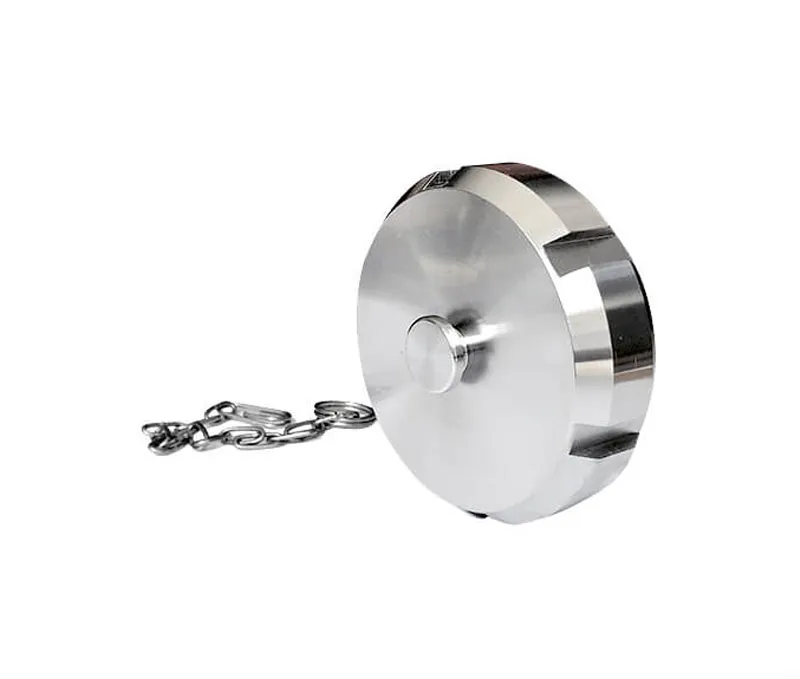

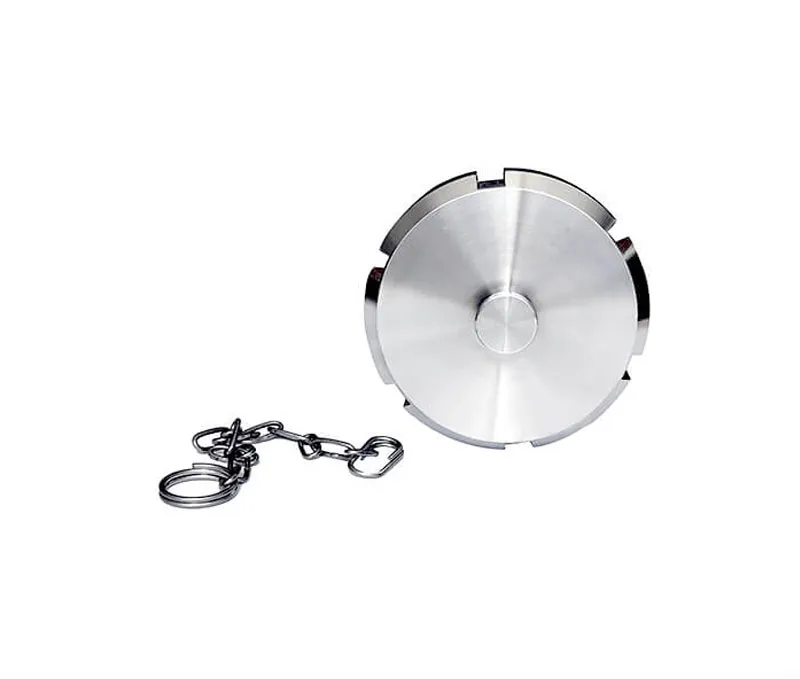

Sanitary Blind Nut Union With Chain

Aohoy 304 ss304 Sanitary Stainless Steel inox sms din 13rbn blank Blind Nut union with chain
MaterialStainless Steel 304, 316L
Connection TypeUnion
Connection Size1″ to 4″, DN10-DN100
Max Pressure15bar (220PSI)
StandardSMS, ISO / IDF, DS, RJT, DIN, DIN11864, etc
Product Description

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure 0.065″. In 4˝ size, wall thickness measures. 0083″, 6˝ and 8˝ 0.109″

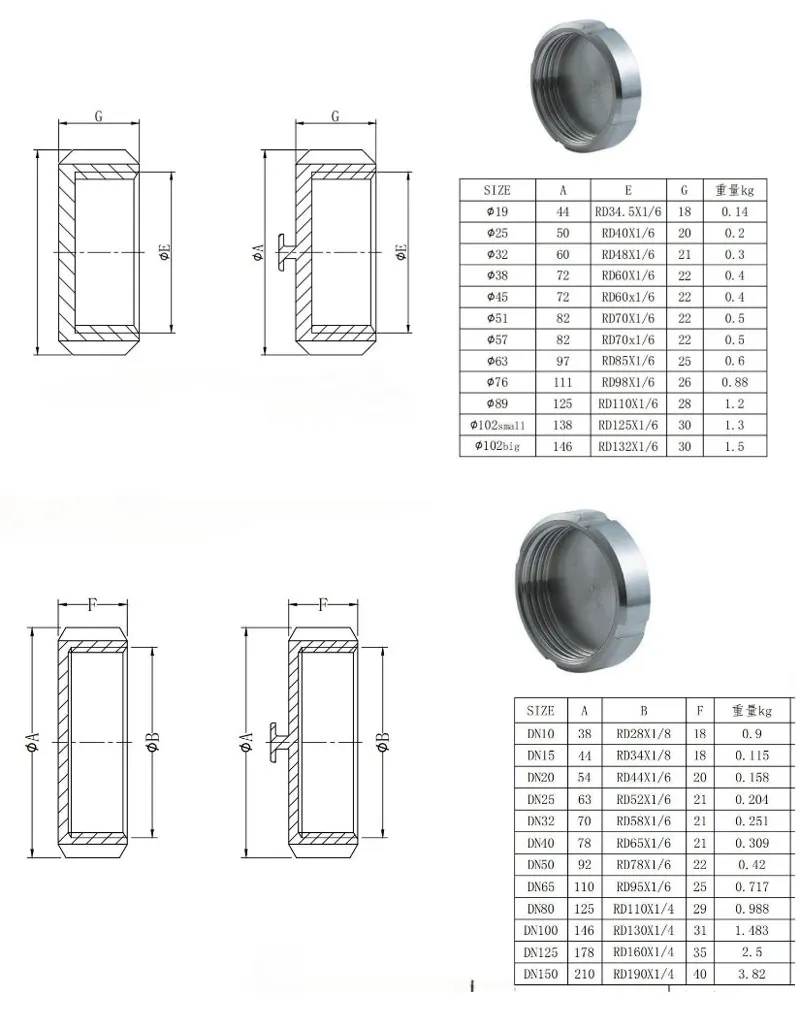

Rreference data
Material Stainless Steel 304, 316L
Connection Type Union
Connection Size 1″ to 4″, DN10-DN100
Max Pressure 15bar (220PSI)
Working temperature -20-180°C (Silicone), -20- 150°C (EPDM), -20~220°C (PTFE)
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Standard SMS, ISO / IDF, DS, RJT, DIN, DIN11864, etc
